平场半复消色差物镜MPLFLN50X
平场半复消色差物镜MPLFLN50X
Specifications
Magnification [X] 50
Numerical aperture (NA) 0.8
Working distance (WD) [mm] 1
Objective Field Number 26.5
Immersion medium Air/Dry
Spring loaded N/A
Correction collar N/A
Correction range of correction collar N/A
Iris N/A
Correction level of chromatic aberration Semi-apochromat
(FL)
Parfocalizing distance [mm] 45
Back focal plane (BFP) position -8.0
Type of screw thread W20.32X0.706(RMS)
Brightfield(Reflected) Good
Brightfield(Transmitted) Good
Darkfield(Reflected) N/A
Darkfield(Transmitted) N/A
DIC(Reflected) Good
DIC(Transmitted) N/A
Phase Contrast N/A
Relief Contrast N/A
Polarized Light Limitation
Fluorescence (B, G Excitation) Good
UV Fluorescence (at 365nm) N/A
Multiphoton N/A
TIRF N/A
IR N/A
WLI N/A
Auto Focus Good

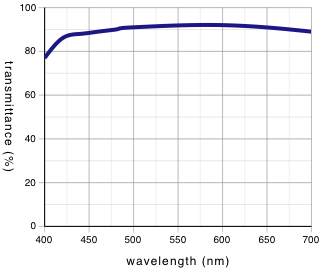

Transmittance/Wavelength

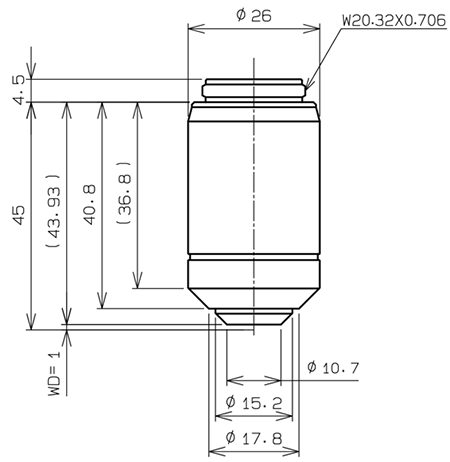

Dimensions
